Aluminum Motorcycle Intake Flange | 58-75mm Stud centers | vm30 vm32 vm34 | Motorcycle Intake

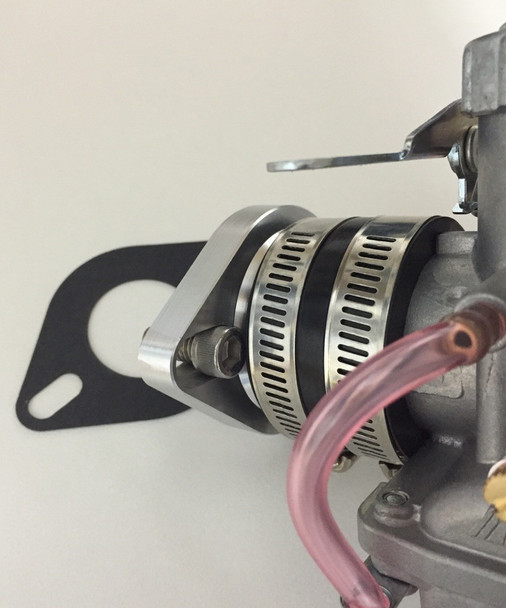

 This mounting flange and sleeve assembly is designed for fitting Mikuni carburetors with a 40mm spigot outside diameter to any engine with mounting stud spacings ranging from 58mm center to center measurement through to 75mm.

 The alloy stub flange is made using 6061 grade Aluminum with a silver anodized coating. The inside hole diameter is 34mm with a total height of 29mm and 40mm outside spigot diameter for matching with Mikuni VM30 VM32 VM34, TM33-8012, TM34 and RS34 carburetors.

 The slotted mounting holes in the 10mm thick base do suit mounting hole centers from 58 thru 75mm when using up to 5/16″ or 8mm socket head screws (Allen key).

 When mounted on your engine the front face of your carburetor will be positioned in a standoff location of 29mm back from the cylinder head mounting surface. If you are really cramped for space we also offer another similar one of these suitable for only 62 thru 75mm Bolt centers, which reduces the standoff down to 26mm.

The assembly includes a gasket and heavy duty rubber boot attachment sleeve which has a 40mm inside diameter and stainless steel hose clamps featuring rolled outer edges to protect the rubber.

    These work great on kz400| kz440 | cb350 | cb360 | Honda 400 450 CB450 Cm400 Etc | Gs400 GS450 |

      These work on just about any Japanese Motorcycle with 58mm to 75mm spacing on your current intake.

   Perfect for your custom project or Mikuni or Keihin Swap.
